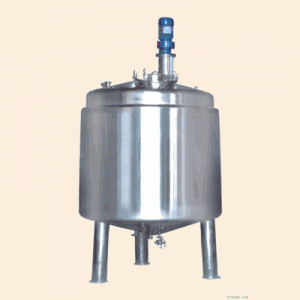

Cans with thick / thin with cans overview:

The 1 series of container with heating and thermal insulation function, according to the " steel welded vessel technology " to manufacture, test and acceptance.

The 2 volume has 100L 7000L various specifications, for you to choose from, but also according to the actual needs of customers to design, processing.

3 stirring shaft sealing adopts imported sanitation-grade mechanical seal, reducer selection of world famous brand of German Flender or SEW, stirring speed was 36? 53 rpm. Also can use variable frequency speed control.

4 interface with the international general standard ISO fast assembling chucking, liner imported 316L or 304.

There are 5 tank level gauge ( contactless ultrasonic, hydrostatic transmission type or a glass tube ), air respirator, sterilization, steam outlet thermometer ( digital or dial ), CIP universal tank washing device, lamp hole mirror, a number of the liquid inlet and outlet, a manhole.

Cans with thick / thin with cans of characteristics:

Internal shape: vertical cylindrical ( inner cylinder is contacted with liquid medicine )

Internal material: 316L (imported from Japan )

Internal finish: 0.28-0.45 μM

Surface material: 304

Heating coil: 304 mirror panel or matt

Insulation material: pearl cotton (high temperature, anti aging )

Appearance: temperature≤ 10 ℃

Working pressure : pressure

Operating temperature: 60 ℃ -100 ℃

Sterilization pressure: 0.15-0.3MPa

Sterilization temperature: 121 ℃ -132 ℃
