The reactor can be used SUS304, SUS316L materials such as stainless steel manufacturing. The agitator has anchored, frame type, paddle type, turbine type, scraper type, combination type, rotating mechanism can adopt the cycloid reducer, can satisfy the special requirements of various materials reaction. Stepless reducer, sealing device can adopt mechanical sealing, heating and cooling can be used, half pipe jacket, coil, Miller board structure, way of heating steam, electric heating, heat conducting oil, to meet the acid, high temperature, wear resistance, corrosion resistance of different working environment technology need. According to user requirements for the design, manufacturing process.

Main structure

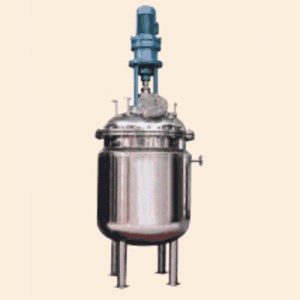

Reaction pot is mainly composed of an inner tank, clamping sleeve, a stirring device, a supporting base four parts (according to process needs to be used with thermal insulation structure ).

1 inner tank according to process needs to use the stainless steel ( SUS304, SUS316L or SUS321 ) and other materials, the inner surface of mirror polishing, cleaning, sterilization can be online CIP SIP, meet the health requirements.

In 2 jacket according to process needs to be made of stainless steel or carbon steel ( SUS304 ) ( Q235-B ).

3 suitable diameter ratio design, on-demand customized stirring device; stirring shaft sealing adopts pressure health mechanical sealing device, in order to keep the tank pressure and prevent tank leakage and causing unnecessary pollution and material loss.

4 bearing type according to operational requirements using a hanging lug type or landing leg type.
